•  Auto Grading Trimmer

If you'd like to learn more about this machine from Burchland, please contact us at (619) 916-1465.

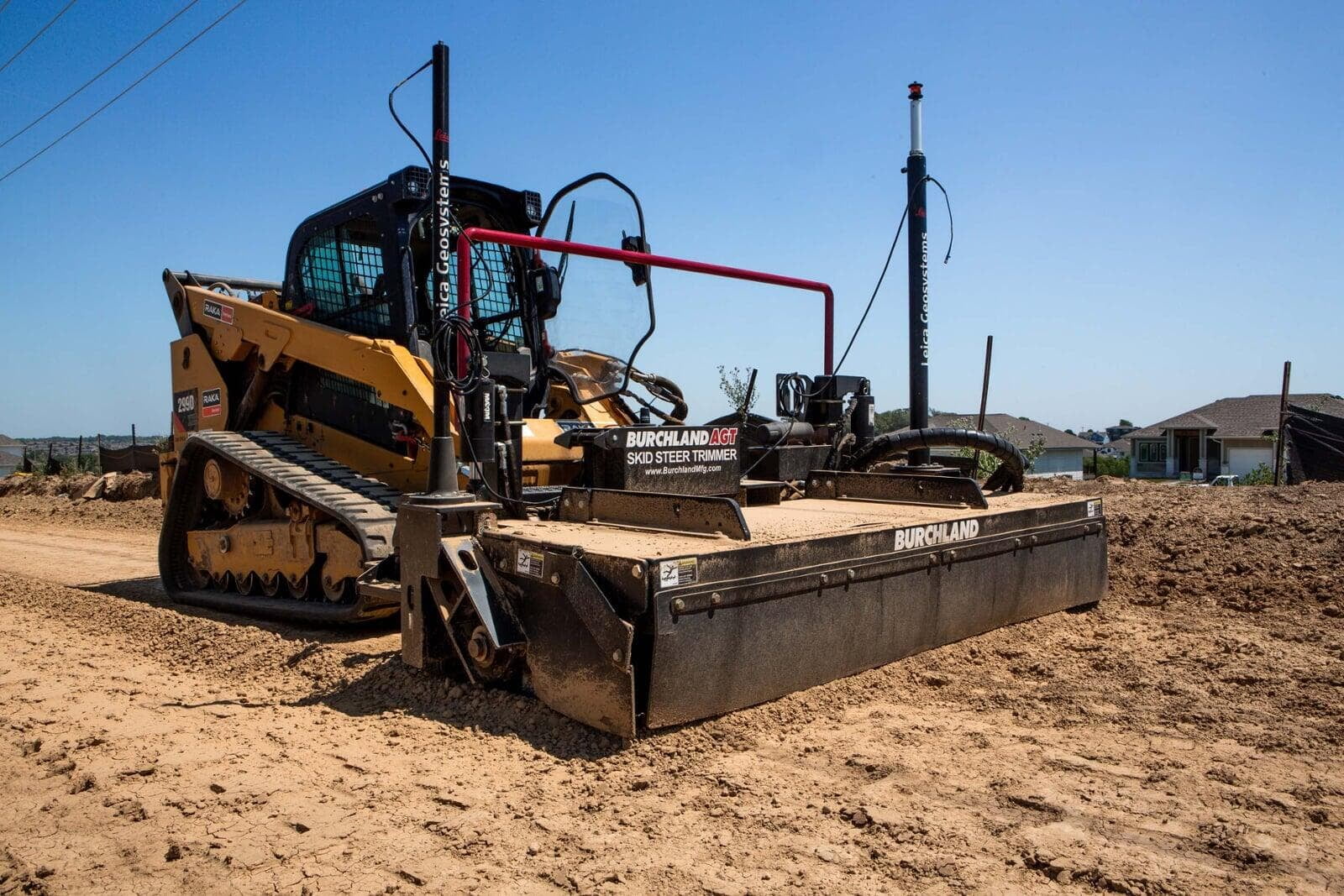

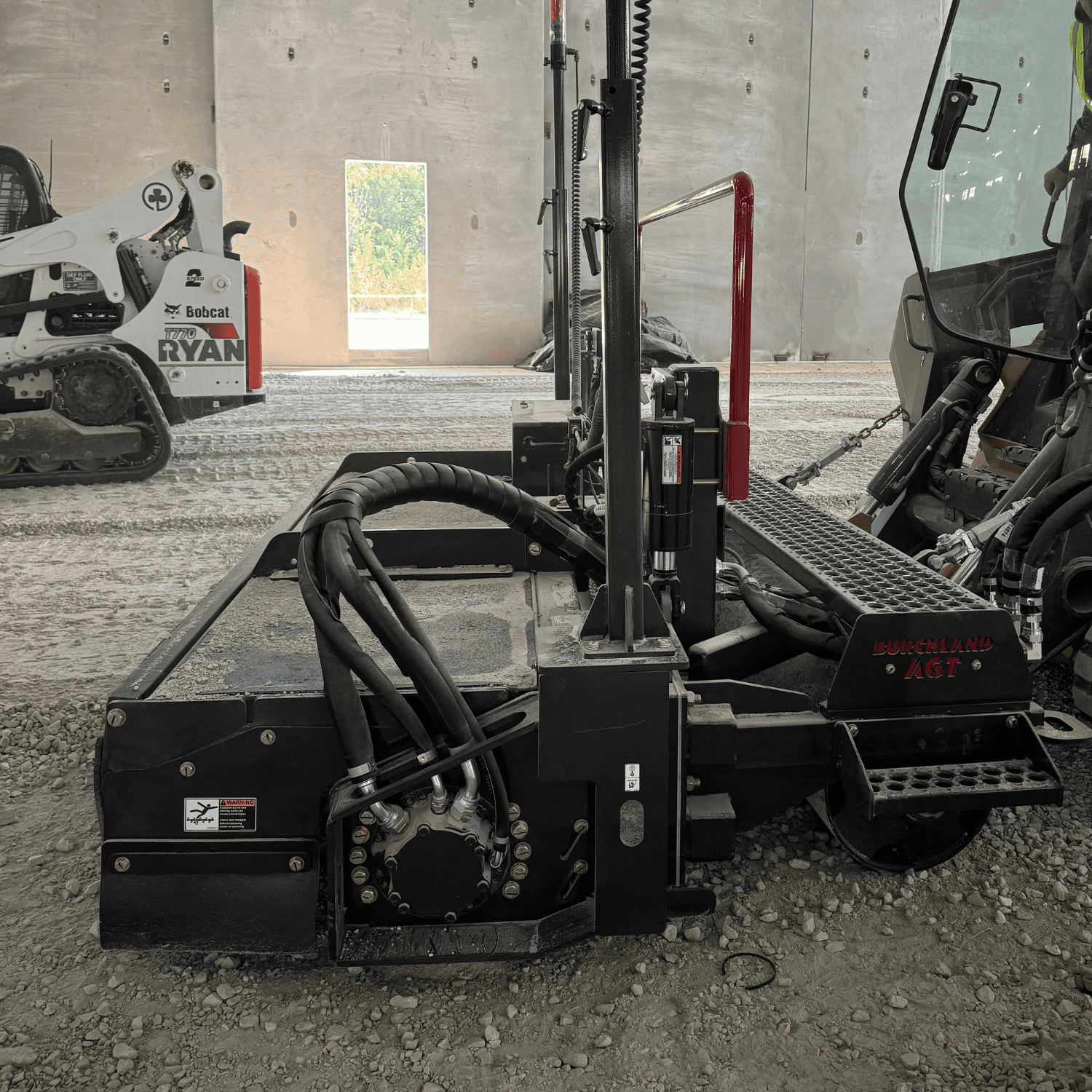

The Burchland Auto Grading Trimmer (AGT) is a skid steer attachment engineered for precision grading on paving projects that require working with hard materials. This versatile attachment excels in trimming sub-grade soil beneath building pads, parking lots, curbs, gutters, sidewalks, trails, and roads.

The AGT Auto Grading Trimmer empowers contractors to achieve precise elevation cuts with a smooth finish, even in challenging sub-base materials. When working with rock sub-bases, the trimmer can first grade the soil and then refine the compacted rock to the exact elevation needed. This method ensures optimal material usage, delivering accurate yields for rock, concrete, or asphalt, while helping contractors minimize material waste and maximize profits.

Universal Fit

Universally able to mount on any brand of skid steer.

Accurate Grading

Achieve precise surface grading using a 3-D CAD surface file.

Flawless Finish

Equipped with a drum roller that smooths out imperfections for a perfectly smooth surface.

Technical Specifications

AGT Brochure

The Burchland AGT, Auto Grading Trimmer is a skid steer mounted trimmer designed for site work and concrete contractors looking for a perfectly graded job site.

AGT Parts Book

This detailed guide is designed to help you identify, locate, and understand each part, ensuring efficient maintenance and seamless operation of your equipment.

AGT Operator Manual

Read and understand this manual before using the trimmer and follow all of the safety instructions. Keep this manual with the trimmer at all times.

Details
Reviews
Details

Cut with Power...

The AGT skid steer trimmer integrates seamlessly with all major automated machine control systems, including laser receivers, GPS, Robotic Total Stations, sonic sensors, and string lines. Additionally, it offers the flexibility of manual operation for various applications.

At the heart of the Burchland AGT is its 16-inch outer diameter trimmer rotor, capable of cutting an 8-foot wide path. Equipped with replaceable, carbide-tipped teeth and durable 1/2-inch thick flighting, the rotor effectively windrows trimmed material to one side. A direct-drive hydraulic motor powers the rotor, eliminating the need for gearboxes or chain drives, which simplifies maintenance and enhances reliability.

Behind the trimmer rotor, a precision grader blade smooths and levels the material, delivering a flawless finish. The rotor and grader blade are adjustable via two hydraulic cylinders, allowing for precise adherence to the desired elevation. Their 5-degree angle relative to the travel direction further ensures a smooth and consistent surface.

An additional standout feature of the AGT is its 16-inch diameter smooth drum roller, which seals and stabilizes the finished grade. Acting as a stabilizer, the roller minimizes arm movement from the skid steer loader, enhancing precision and ensuring an impeccable finish.

For optimal performance, the Burchland AGT requires a high-flow skid steer equipped with an auxiliary case drain line. If your machine does not have this feature, call us to explore installation options and make the most of the AGT’s capabilities.


Reviews
"It's been great. They've been extremely helpful and very responsive. We’ve had some issues—not their fault—just some technical difficulties on our end. The subgrade we were working with was so hard that it was actually causing some equipment to break. Despite this, they went above and beyond to help us resolve the situation.

He’s been incredibly supportive, making multiple trips down here—three so far—to help us out. Every time we’ve had an issue, his response has been immediate. He’s been quick to say, 'Let me get on that,' whether it’s calling the manufacturer or finding a solution. He’s literally jumped through hoops for us.

As for the machine itself, everything about it has been great. It’s important to note that the challenges we faced were entirely due to the unique conditions on our project—not because of anything they did. Overall, the experience has been wonderful, and I couldn’t recommend them more."

Chris Lutheran - Ryan Company
